Model |

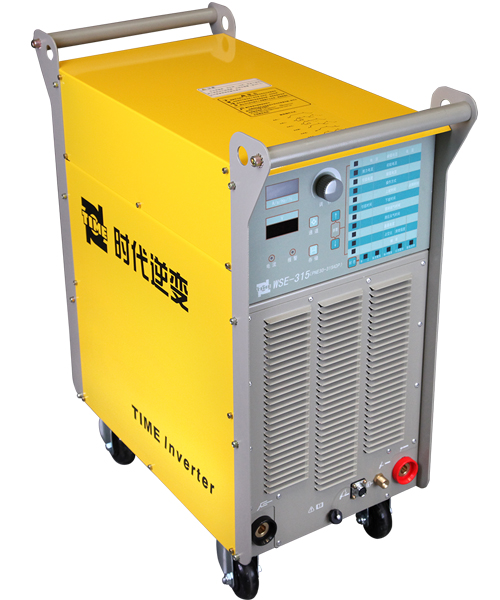

WSE-315 |
|
Company type |
PNE30/32-315ADP |
|
Rated input voltage(V) |
3 phase 380V±(15~20)% 50~60Hz |
|
Rated Input capacity (KW) |
12.1 |
|
No-load voltage (V) |
66±5% |
|
Output current adjusting range(A) |
12～315 |
|
Pulse frequency (Hz) |
0.5～200 |
|
Pulse ratio range |
10%～90% |
|
Slope up time (s) |
0～10 |
|
Slope down time (s) |
0～10 |
|
Spot time (s) |
0.2～5 |
|
Pre-flow time (s) |
0.1～1.5 |
|
Post-flow time (s) |
1～15 |
|
Surge current range(MMA) |
0.01～0.5 |
|
AC frequency (Hz) |
20～100 |
|
AC balance |
10%～50% |
|
Duty cycle (40℃) |
60% / 100% |
|
Efficiency |
≥85% |
|
Power factor |
0.93 |
|
Insulation grade |
F |
|
Case protection grade |
IP21S |
|
Cooling |
Wind |
|
Dimensions (mm) |
700×360×780 |
|
Net weight (kg) |
63 |
