The current page:Home > Products > Welding power source > AC/DC TIG
Products

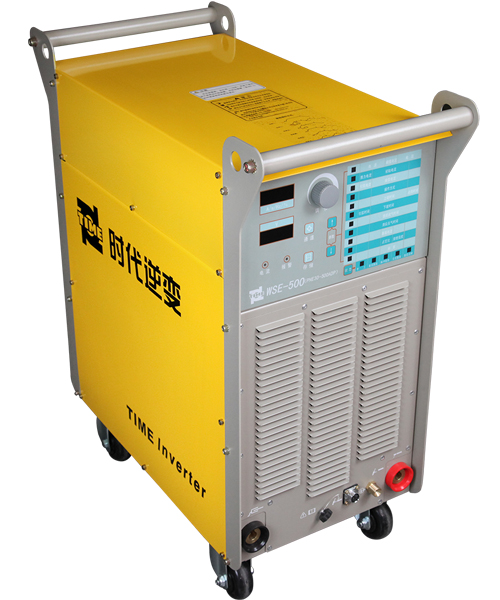

WSE-500(PNE30/31-500ADP)

Feature code:

Main characteristics:

●IGBT inverter technology
●Microcomputer control technology
●Welding parameter automatically stores
●Five operating mode for AC Square wave TIG welding
●Parameters in panel are set by coordinate-type touch key and the single knob for adjustment
●Eight operating mode both for DC TIG, DC pulse TIG
●AC Square Wave TIG / Pulse TIG / DC TIG / Spot TIG/MMA in this machine
●Mainly be used for welding of aluminum, magnesium aluminum alloy and its alloys in the field of aviation,
●aerospace, air separation equipment, radiator, aluminum pipe, bicycle, pressure vessel, furniture industry and so on
●Current output with Quasi sinusoidal waveform;
●Welding cable can be lengthened to 60 meters (automatically alarm when the cable wings on welding mode);
●Double welding function is optional;
●Foot switch is optional;
●Current displays effective value in AC TIG mode;
●Interface for the alarm function of water shortage

Model

WSE-500

Company type

PNE30/31-500ADP

Rated input voltage(V)

3 phase 380V±(15~20)% 50~60Hz

Rated Input capacity (KW)

17.6

No-load voltage (V)

76±6%

Output current adjusting range(A)

12510

Pulse frequency (Hz)

0.5200

Pulse ratio range

10%90%

Slope up time (s)

010

Slope down time (s)

010

Spot time (s)

0.25

Pre-flow time (s)

0.11.5

Post-flow time (s)

115

Surge current range(MMA)

0.010.5

AC frequency (Hz)

20100

AC balance

10%50%

Duty cycle (40℃)

60%  / 100%

Efficiency

≥85%

Power factor

0.93

Insulation grade

F

Case protection grade

IP21S

Cooling

Wind

Dimensions (mm)

700×360×780

Net weight (kg)

68/72
